Snapshots

A snapshot records diagnostic information from a deployment node. Warden collects 30 or more categories, including system state, runtime health, certificates, and network configuration. It packages the results in a self-contained HTML report that you can search and share.

See it in action

Open an example report from a live deployment to see the diagnostic output.

View Example Report

What Is Captured

Warden runs diagnostic commands in parallel and limits how long each command can run. It removes secrets from the output. The HTML report groups the results into these categories.

System & Hardware

Category	What's Collected
System Information	OS version, kernel, hostname, cloud metadata (AWS/GCP)
CPU	Per-core usage, load average, CPU count, architecture
Memory	Usage breakdown, huge pages, NUMA, top consumers, OOM activity
Disk & Storage	Filesystem usage, inodes, NVMe health, DRBD status, I/O stats
Network	Interfaces, routes, listening ports, iptables, traffic shaping, TCP states
Processes	Top consumers by CPU/memory, LaserData process details (PID, threads, FDs, uptime)

Runtimes & Services

Category	What's Collected
Installed Versions	Warden, Iggy, Connectors, Prober binary versions and capabilities
Runtime Telemetry	Per-runtime heartbeats, CPU, memory, uptime, connector sources/sinks
Iggy Server Health	Authenticated stats - messages, streams, topics, clients, partitions, consumer groups
Systemd Services	Service states, failed units, restart history (24h), timers
Warden Process Metrics	CPU/memory/disk/network I/O, file descriptors, thread count

Security & Certificates

Category	What's Collected
Certificates & TLS	Full chain validation, expiry warnings, CA trust, Let's Encrypt status, ACME renewal
Credentials Status	File permissions, ages, PAT freshness (values redacted)
Security Context	AppArmor/SELinux, ASLR, entropy, kernel hardening

Kernel & Stability

Category	What's Collected
Sysctl & Tuning	TCP buffer sizes, memory settings, mimalloc overrides
Kernel Modules	Loaded modules, interrupts, softirqs, ECC memory errors
System Stability	Reboot history, vmstat, swap activity, zombie detection
Coredump History	Crash records (last 30 days) with binary identification

Logs & Connectivity

Category	What's Collected
Service Logs	Last 2000 lines per runtime (Warden, Iggy, Connectors, Prober) + errors filtered
System Logs	Kernel errors, dmesg, boot log errors, journal storage
Outbound Connectivity	ACME endpoint, port 80/443 reachability
Time Synchronization	NTP/chrony status, time drift

Interactive Report

The report includes these tools:

A dashboard with CPU, memory, disk, I/O throughput, and Iggy statistics.
Search across sections, with matching text highlighted.

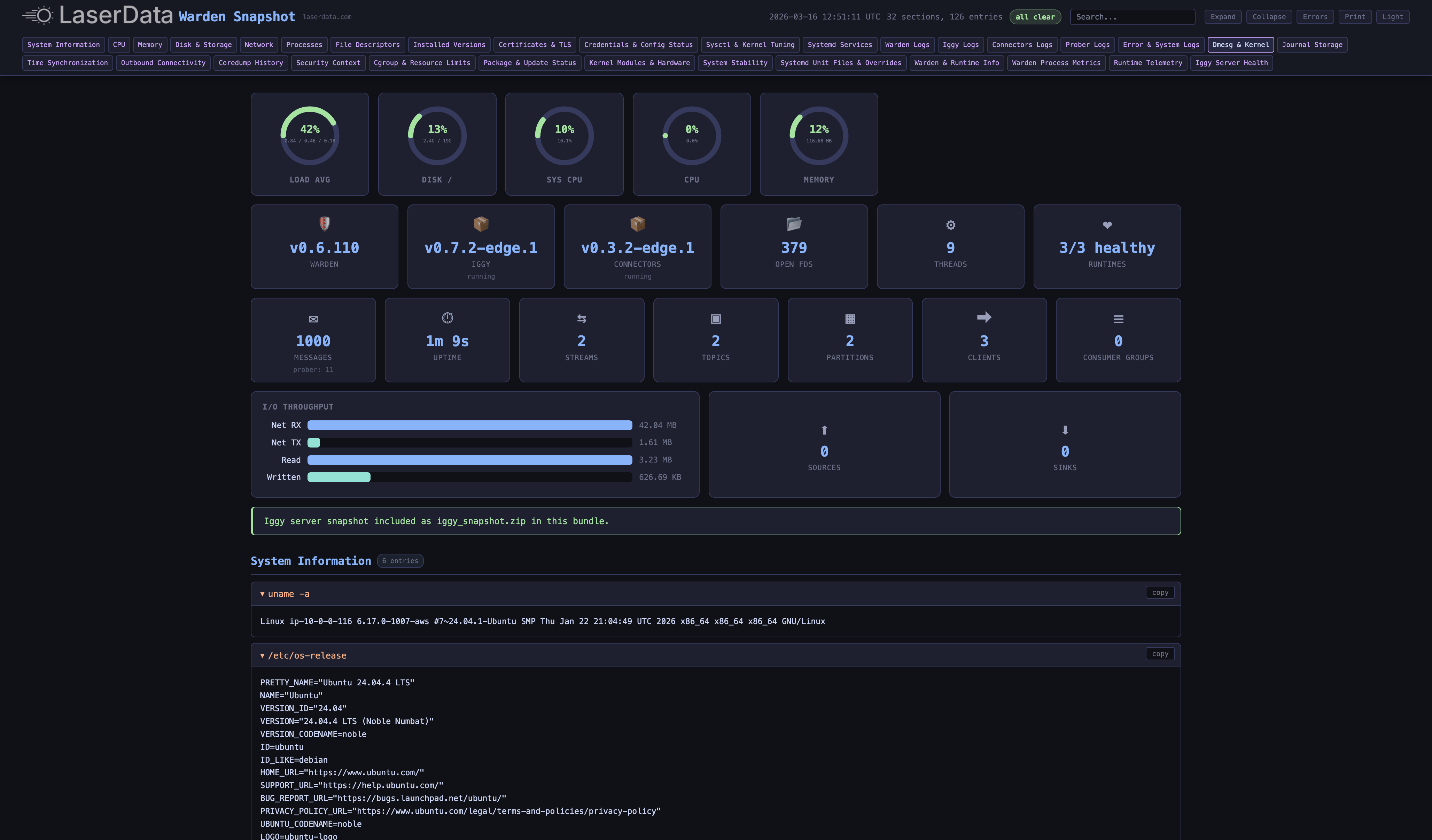

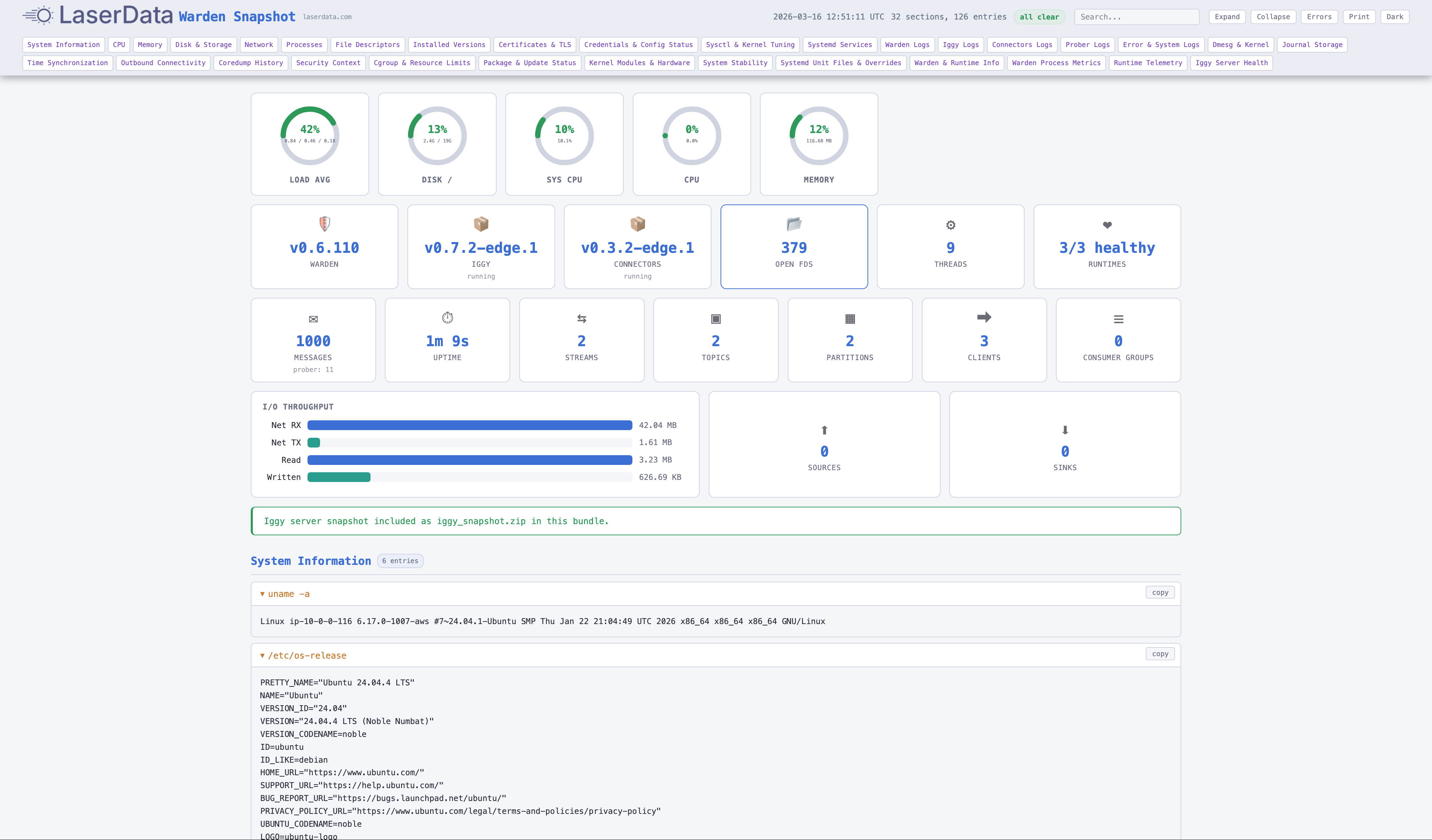

Dark and light themes, selected in the header.
Controls to expand or collapse sections and find errors.
A copy button for each entry.
A layout for printing.

How It Works

A snapshot follows this sequence:

You request it through the Console or API.
The Supervisor sends a snapshot task to each node.
Warden runs diagnostic commands in parallel, with a 30s timeout for each command.
Warden removes secrets from the output.
Warden creates the HTML report.
If requested, it includes an Iggy snapshot of the data directory as a ZIP.
It uploads the report to encrypted cloud storage.
You download the ZIP with the report and optional Iggy snapshot.

Creating a Snapshot

From the Console

Open your deployment in the Console.
Open the Snapshots tab.
Click Create Snapshot.

The status changes from Processing to Completed after all nodes finish.

Options

Option	Default	Description
`redact_secrets`	`true`	Mask sensitive values (passwords, keys, tokens) in the report
`include_iggy`	`true`	Include Iggy server data snapshot as a separate ZIP

Snapshot Status

Status	Meaning
Processing	Snapshot tasks dispatched, waiting for nodes to complete
Completed	All nodes have uploaded their reports - ready to download

Only one snapshot can run for a deployment at a time.

Plan Limits

Resource	Basic	Pro	Enterprise
Snapshots per deployment	3	5	20
Snapshot retention	7 days	14 days	90 days

Reading and downloading snapshots require deployment:read. Creating or deleting them requires deployment:manage.

API Reference

Create a Snapshot

curl -X POST {supervisor_url}/deployments/{deployment_id}/snapshots \
  -H "ld-api-key: YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "redact_secrets": true,
    "include_iggy": true
  }'

Both fields are optional and default to true. A successful request returns 204 No Content.

List Snapshots

curl "{supervisor_url}/deployments/{deployment_id}/snapshots?page=1&results=10" \
  -H "ld-api-key: YOUR_API_KEY"

{
  "items": [
    {
      "id": 1,
      "tenant_id": 1,
      "division_id": 1,
      "environment_id": 1,
      "deployment_id": 1,
      "node_id": 610809900976570889,
      "deployment_name": "my-cluster",
      "name": "snapshot-20260601-103000",
      "status": "completed",
      "created_at": "2026-06-01T10:30:00Z",
      "completed_at": "2026-06-01T10:31:00Z"
    }
  ],
  "page": 1,
  "total_results": 1,
  "total_pages": 1
}

Download a Snapshot

curl {supervisor_url}/deployments/{deployment_id}/snapshots/{snapshot_id}/download \
  -H "ld-api-key: YOUR_API_KEY"

{
  "url": "https://storage.example.com/snapshots/...?signature=..."
}

The response contains a presigned URL, a temporary authorized download link, for the snapshot ZIP.

Delete a Snapshot

curl -X DELETE {supervisor_url}/deployments/{deployment_id}/snapshots/{snapshot_id} \
  -H "ld-api-key: YOUR_API_KEY"

A successful request returns 204 No Content.
